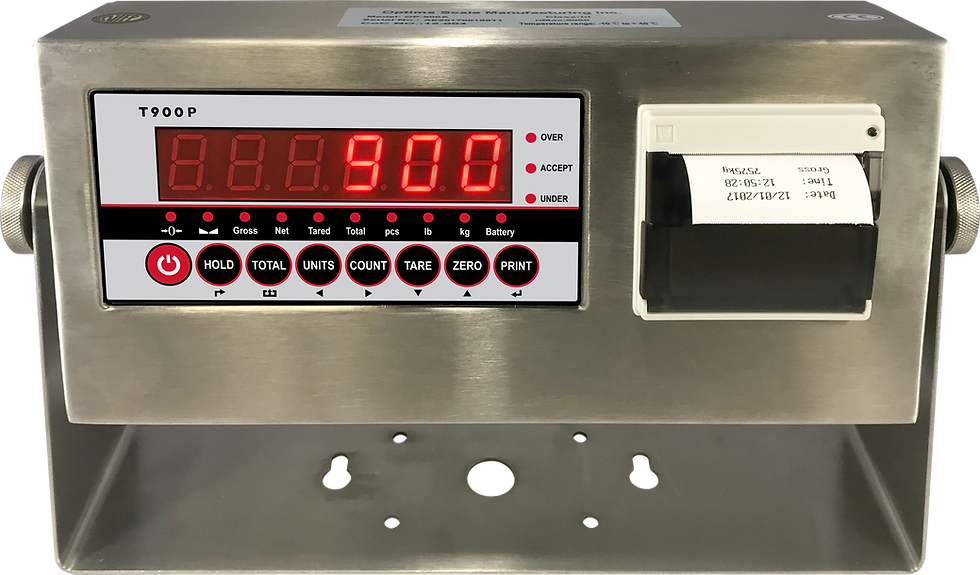

T900 Series Indicator
FEATURES:
- Painted Steel, Stainless Steel or NEMA 4X Washdown Stainless Steel enclosure
1” LED or LCD display with backlight
Units: LED (lb, kg), LCD (lb, kg, oz, lb:oz, g)
Gross/Tare/Pre-Set Tare/Zero
Multiple Hold functions
Count weighing
Accumulation weighing
Overload / Underload alarm
Power saving mode
Automatic date and time update
Ability to modify gravity based on different geographical locations
100% manual zero range setting
Automatic error warning alarm
Splash proof keyboard and display
Connects to a remote display
Connects to multiple printers
NTEP approved for 5,000 divisions
Displays up to 50,000 graduations
Mounting bracket and hardware (included)
Operates on 110V AC adapter (included)
Multi-point calibration (up to 5 points)
Full Duplex RS-232 Serial Port
Drives up to 6 350Ω load cells
1 year limited warranty
Specifications
- Display: LCD or LED; 1in. x 6 digit numeric
- Units: lb, kg (primary), oz, g (LCD only)
- Accuracy Class: 5,000 e
- Resolution: 120,000 dd industrial; 10,000 dd HB44
- Excitation Voltage: 5V DC
- Largest Output Current: 120 mA
- Excitation Circuit: 5 VCD, 4 wire connections
- Load Cell: 6 load cells of 350 Ω maximum
- Load Cell Excitation: 5 ± 0.5VDC
- Display Resolution: 30,000; ADC: 2,000,000
- Zero Stability Error: TKspn < ± 6 ppm//K
- Sensitivity (internal): 0.3 μV/d
- Input Voltage: -30 to +30mV DC
- Power: 100~240VAC @ 50/60Hz
- Power Consumption: 5W @9VDC
- Operating Temperature: 14°F to 104°F ≤ 90%RH
- Weight: 4.3 lbs (1.95 kgs)
- Internal Resolution: 24 bit A/D Sigma-Delta; 1,048,000 d
- Display Increments: Selectable 1, 2, 5, 10, 20, 50
- Decimal Points: Selectable 0, 1, 2, 3, 4 decimal places
- Conversion Rate: 12 samples/second typical
- Analog Signal Input Range: 1mV/V to 3mV/V
- Analog Signal Sensitivity: 0.1 uV/graduation (min)
- Measurement Rate: 0 ~ 15mV
- Auto Zero Tracking: 0 - 5 dd increments
- Auto Zero Delay: 0 - 3 second increments
- Motion Detect: 1 - 10 dd
- Motion Delay: 0 - 55 dd
Options
- LED or LCD display option
- Stainless steel or mild steel casing
- NEMA 4X Washdown casing
- Relay & Analog output
- 6V Rechargeable Battery
- Data Logging Software
- Wireless capability
Accessories
- Thermal Ticket Printer
- Label Printer
- Zebra Label Printer
- Remote Display
- Indicator Stand
- Stainless steel enclosure
- I/O Card to control external system
